Seasons SPxxEx-xx & SPxxHx-xx PTAC Configuration Guide
|
Remote Thermostat Interface |
Remote Thermostat Interface Image |
|
Screw Terminal |
 |
SPxxEx-xx & SPxxHx-xx Series Remote Thermostat Enable & Wiring:
|
Step |
Image |
|
|
1 |
Unplug the PTAC from power |
|
|
2 |
Remove the two screws on the metal plate that covers the Remote Thermostat Interface of the PTAC |
 |
|
3 |

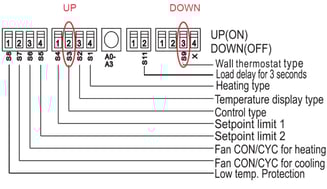

Move dip switch S3 to UP (ON) and move dip switch S9 to DOWN (OFF) |
 |
|
4 |
Wire up the Anacove Screw Terminal Wiring Harness wires to the PTAC's Remote Thermostat Interface according to the below color coding guide |
PTAC Remote Thermostat Interface terminals HEAT2, FC(N), and FC(L) are not used and should have no wires connected to them |
|
5 |
Reattach the metal plate that covers the Remote Thermostat Interface of the PTAC |
|
|
6 |
Plug the PTAC back into power |
AN40400 - Screw terminal PTAC wiring harness color coding guide:
***Unused Anacove Wiring Harness wires should be removed from the Wiring Harness. Cut the wire off approximately 1/2" from the HVAC Controller end of the harness***
|
Anacove Wire Color |
SPxxEx-xx & SPxxHx-xx Remote Thermostat Interface |
|
Red |
24V(L) |
| Black |
24V(N) |
| White |
HEAT 1 |
| Yellow |
COMP |
| Green |
LOW-FAN |
| Brown |
HI-FAN |
| Blue |
4-WAY |
| Orange |
Not Used |
| Seasons PTAC HVAC Controller Gateway Mounting Placement |
|
