PremAire PTWxxxxCxG & PTWxxxxHxG PTAC Configuration Guide
|
Remote Thermostat Interface |
Remote Thermostat Interface Image |
|
Screw Terminal |
 |

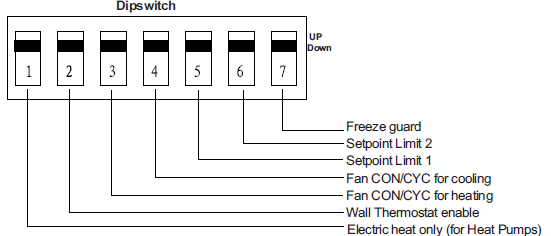

PTWxxxxCxG & PTWxxxxHxG Series Remote Thermostat Enable:
|
Step |
Image |
|
|
1 |
Unplug the PTAC |
|
|
2 |
Move dipswitch 2 into the UP position |
 |
|
3 |
Plug the PTAC back in |

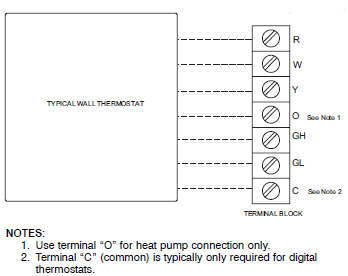

AN40400 - Screw terminal PTAC wiring harness color coding guide:
***Unused Anacove Wiring Harness wires should be removed from the Wiring Harness. Cut the wire off approximately 1/2" from the HVAC Controller end of the harness***
|
Anacove Wire Color |
PTWxxxxCxG & PTWxxxxHxG Remote Thermostat Interface |
|
Red |
R |
| Black | C |
| White | W |
| Yellow | Y |
| Green | GL |
| Brown | GH |
| Blue | Not Used |
| Orange | O |
|
PremAire PTAC HVAC Controller Gateway Mounting Placement |
 |
