Genuine Comfort GCDMxxKxxx0x5CTUxx & GCDMxxKxxx05HTUxx PTAC Configuration Guide
|
Remote Thermostat Interface |

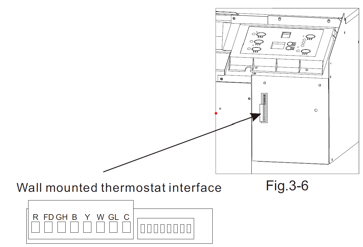

Remote Thermostat Interface Image |
|
Screw Terminal |
 |
GCDMxxKxxx0x5CTUxx & GCDMxxKxxx05HTUxx Series Remote Thermostat Enable:
|
Steps |
|
|
1 |
Turn the unit off at the user controls. The unit needs power but the power button should be off |
|
2 |
Hold the "HEAT" and "+" buttons at the same time for 3 seconds until you hear the buzzer |
|
3 |
The display will read "r" confirming that the sequence was performed successfully |
AN40400 - Screw terminal PTAC wiring harness color coding guide:
***Unused Anacove Wiring Harness wires should be removed from the Wiring Harness. Cut the wire off approximately 1/2" from the HVAC Controller end of the harness***
|
Anacove Wire Color |
GCDMxxKxxx0x5CTUxx & GCDMxxKxxx05HTUxx Remote Thermostat Interface |
|
Red |
R |
|
Black |
C |
|
White |
W |
|
Yellow |
Y |
|
Green |
GL |
|
Brown |
GH |
|
Blue |
B |
|
Orange |
Not Used |
