GE AZ85E & AZ85H VTAC Configuration Guide
***The HVAC Controller Gateway should always be mounted as close to the return of the VTAC as possible***
|
Remote Thermostat Interface |

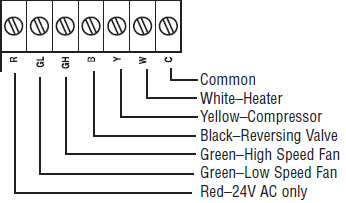

Remote Thermostat Interface Image |
|
Screw Terminal |
 |
AZ85E & AZ85H Series Remote Thermostat Enable:
|
Step |
|
|
1 |
There are no configuration settings to be made as the VTAC is always in remote thermostat mode |
AN40400 - Screw Terminal Wiring Harness color coding guide:
***Unused Anacove Wiring Harness wires should be removed from the Wiring Harness. Cut the wire off approximately 1/2" from the HVAC Controller end of the harness***
|
Anacove Wire Color |
AZ85E & AZ85H Remote Thermostat Interface |
|
Red |
R |
| Black |
C |
| White |
W |
| Yellow |
Y |
| Green |
GL |
| Brown |
GH |
| Blue |
B |
| Orange |
Not Used |
