First Co xxSPXRx-HP VTAC Configuration Guide
|
Remote Thermostat Interface |

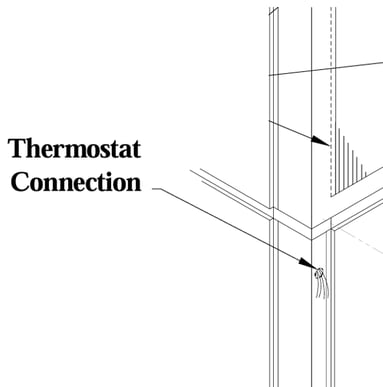

Remote Thermostat Interface Image |
|
Screw Terminal |
 |
xxSPXRx-HP Series Remote Thermostat Enable:
|
Step |
Image |
|
|
1 |
|
There are no configuration settings to be made as the VTAC is always in remote thermostat mode |
AN40400 - Screw Terminal Wiring Harness color coding guide:
***Unused Anacove Wiring Harness wires should be removed from the Wiring Harness. Cut the wire off approximately 1/2" from the HVAC Controller end of the harness***
|
Anacove Wire Color |
xxSPXRx-HP Remote Thermostat Interface |
|
Red |
Red |
| Black |
Brown |
| White |
White |
| Yellow |
Blue |
| Green |
Green |
| Brown |
Not Used |
| Blue |
Orange |
| Orange |
Not Used |
